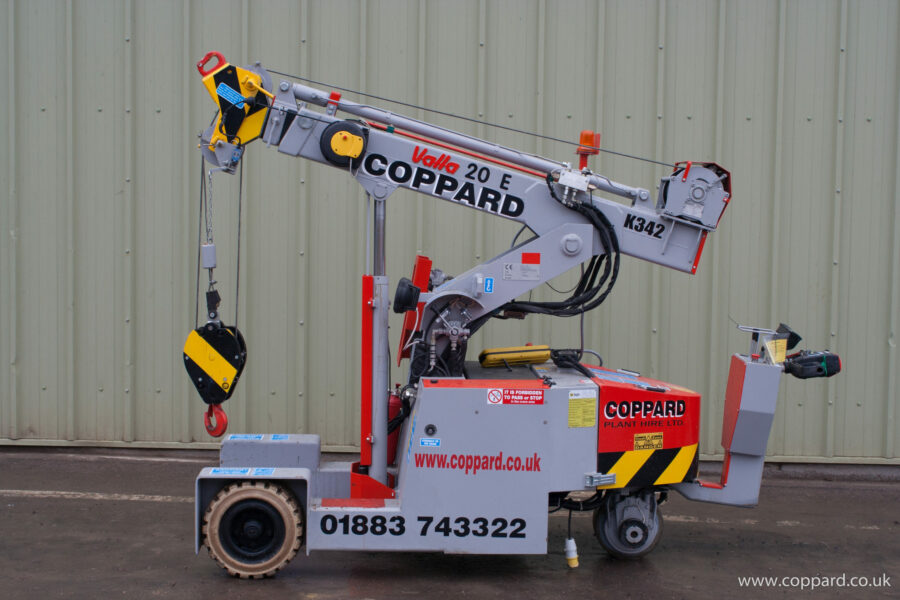

Valla 20E mobile battery operated crane

Download Technical PDF

At A Glance

Max Working Height

4.50

Reach

2.70

See full specification

Description

PROPULSION: 1 kW-24 V DC fanned reversible electric motor fitted with electronic speed control. Disk brake on drive wheel electrically operated. Equipped with dead man cut out. Reduction between motor and wheel by gears in oil bath. Max speed 3,5 Km/h.
BATTERY: Ah 345 – V 24, battery metre on dashboard.
STEERING: by steering helm. Allowing 180° steering. Built in safety device in reverse gear.
CRANE FRAME: fabricated from preformed and welded steel plate with built-in counterweight.
WHEELS: rear 1 cushion 260 x 105. Front 2 solid tires 16 x 6 – 8”.
BOOM: fabricated from preformed and welded steel plate with 2 hydraulic telescoping sections fitted with adjustable nylon wear pads and manual extension.
HYDRAULIC SYSTEM: in own enclosed circuit powered by a 2 kW – 24 V motor driven pump through two self cancelling control valves, lever operated, 1 for boom raise and lower, 1 for boom extending and retraction. Fitted with safety valves and filters. Maximum hydraulic pressure 2600 psi.

Additional Information

Height (mm)	1760
Capacity (t)	2
Max Working Height (m)	4.50
Weight (kg)	1950
Reach (m)	2.70
Max Load (kg)	2000
Width (mm)	950
